CABINET RACK
-
CCTV 보급형 Rack
통신,CCTV용(보급형)
-
CCTV 보급형 Rack

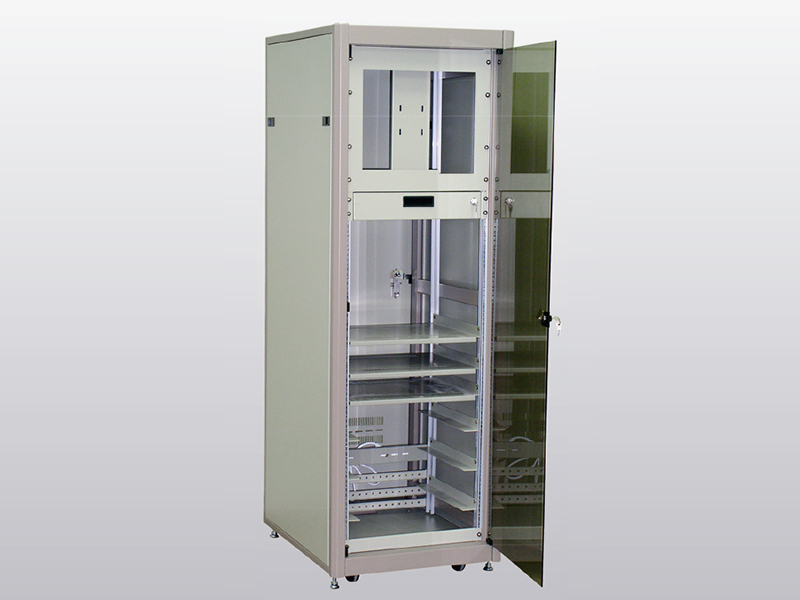

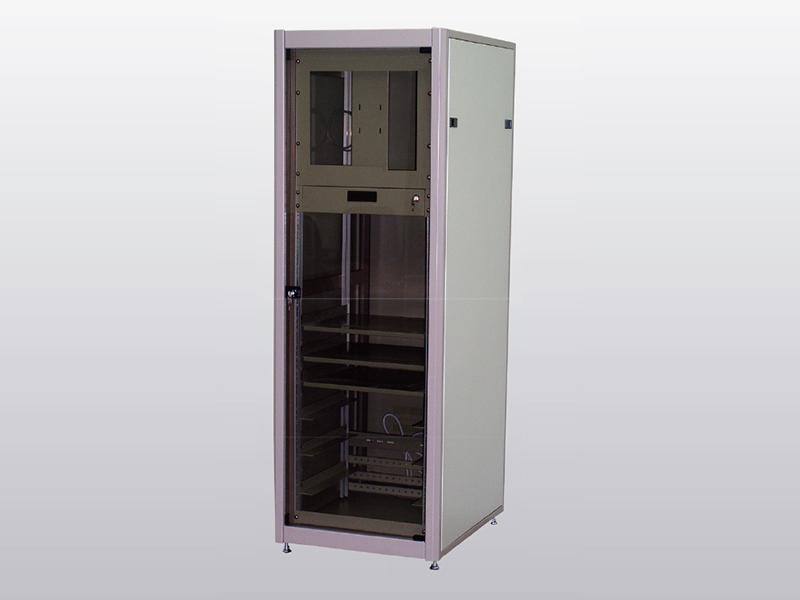

Glass Door Opened
-
CCTV 보급형 Rack

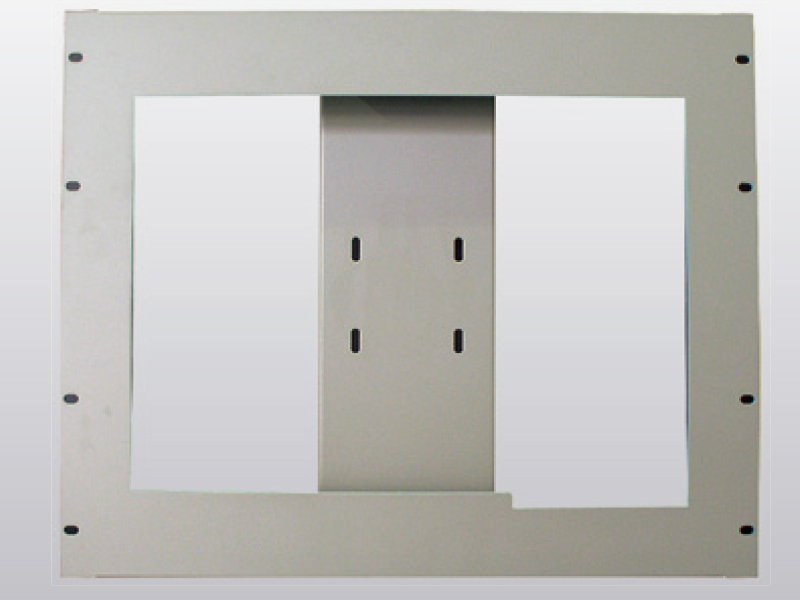

Monitor Panel
-
CCTV 보급형 Rack

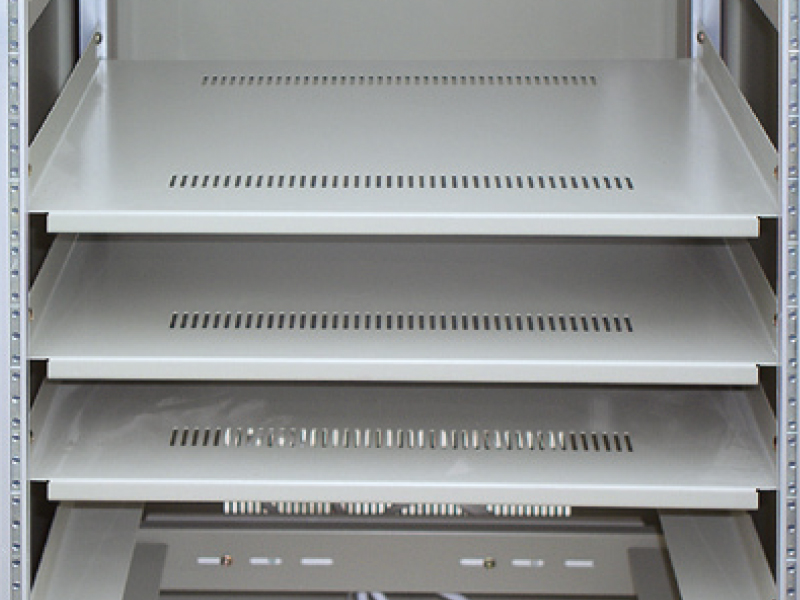

Shelf
-
CCTV 보급형 Rack

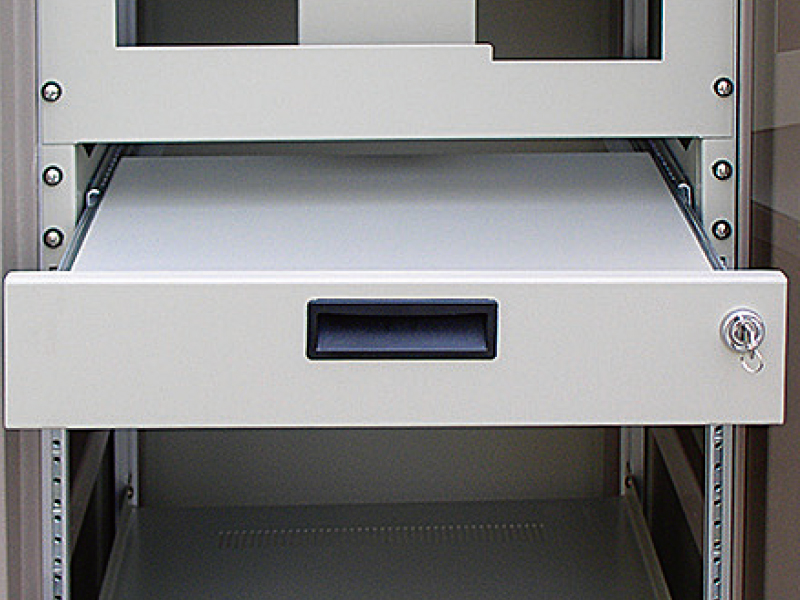

Key Board Shelf(내장)
-
CCTV 보급형 Rack

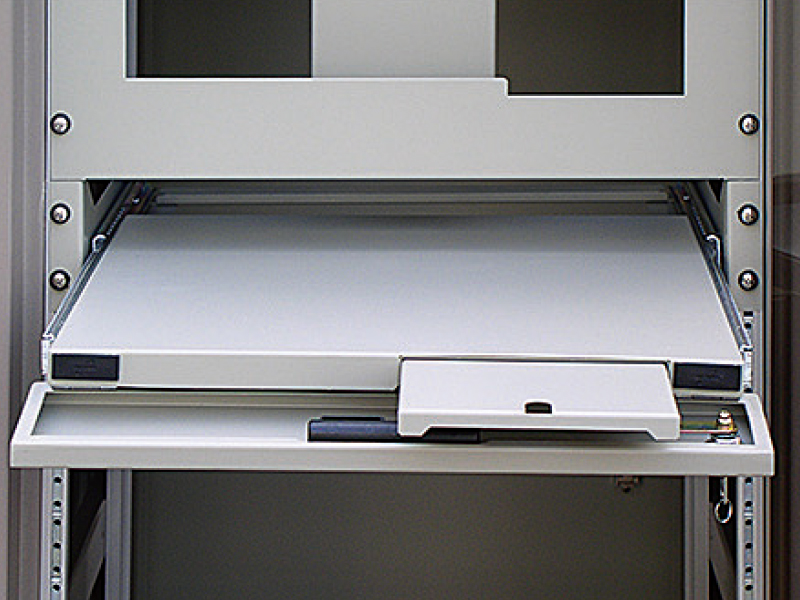

Key Board Shelf(사용)
-
CCTV 보급형 Rack

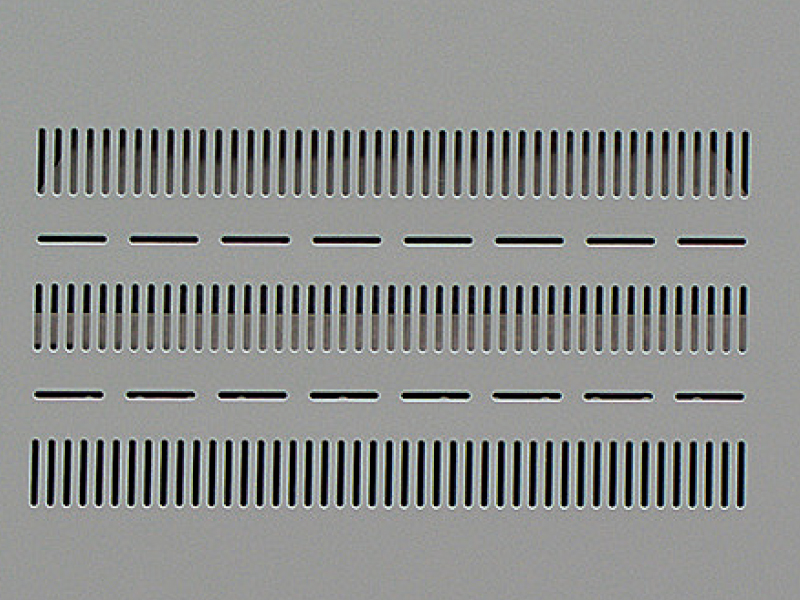

Rear Air Hole
-
CCTV 보급형 Rack

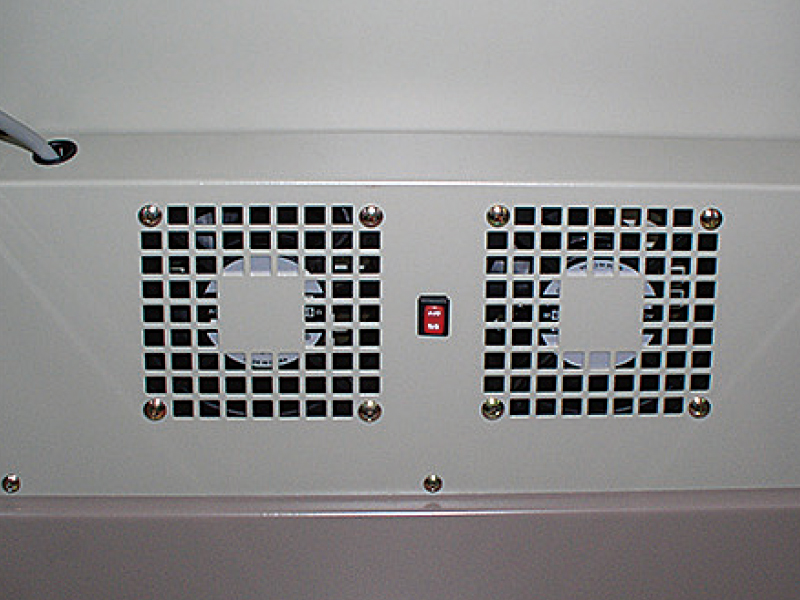

Fan Unit
-
CCTV 보급형 Rack

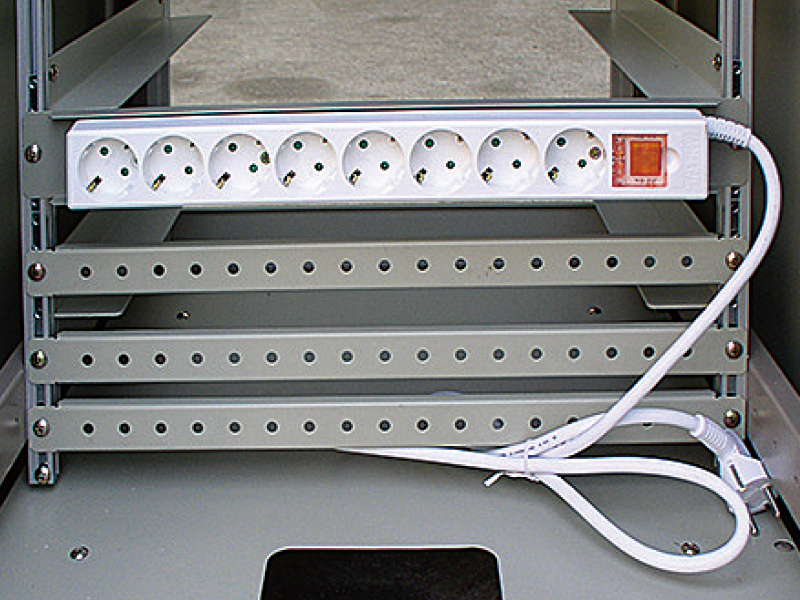

Power Consent
Specification
특징
· 조립방식 Steel Frame의 저가형 Rack
· 국제규격에 의한 설계로 다양한 기능과 호환성
Features
· Low-price method of assembling the Steel frame rack.
· Designed in accordance with international standard and maximize the user´s convenience with various compatibilities.
사양
· 규격 : H: 1800 W: 600(19˝) D: 750
· 재질 : Steel 1.2T , 1.5T , 2.0T
· 표면처리 : 분체도장
Specification
· Size : H: 1800 W: 600(19") D: 750
· Material : Steel 1.2T , 1.5T , 2.0T
· Surface : Powder Coated
용도
· 통신. CCTV. 전기. 전자
Use
· Communication, CCTV, Electricity, Electronic
Standard Dimensions
Unit(U) | 전체높이(H) | 실장높이(H) | 폭(W) | 깊이(D) | 무게(kg) |
13 | 750 | 575 | 600(19˝) | 750 | 62 |
18 | 1,000 | 825 | 70 | ||
22 | 1,200 | 1,025 | 77 | ||
27 | 1,400 | 1,225 | 83 | ||
31 | 1,600 | 1,425 | 90 | ||
36 | 1,800 | 1,625 | 96 | ||
40 | 2,000 | 1,825 | 103 | ||
45 | 2,200 | 2,025 | 109 |
Diagram
| No. | NAME | SPEC | REMARK'S |
| 1 | GLASS FRONT DOOR | 5.0t | 강화유리 |
| 2 | BASE(FRONT/REAR) | SPC 1.5t | |
| 3 | TOP COVER | SPC 1.2t | |
| 4 | TOP BRACKET | SPC 2.0t | |
| 5 | BASE(SIDE) | SPC 1.5t | |
| 6 | FAN | AC230V-50/60Hz | 7/15W |
| 7 | FAN COVER | SPC 1.2t | |
| 8 | MAIN VERTICAL FRAME | SPC 1.5t | |
| 9 | SIDE COVER | SPC 1.2t | |
| 10 | SLIDE LATCH | ABS | BLACK |
| 11 | GUIDE ANGLE | SPC 2.0t | |
| 12 | POWER CONSENT | AC250V | 15A |
| 13 | SIDE BRACKET | SPC 1.5t | |
| 14 | SHELF | SPC 1.2t | |
| 15 | SHELF FRAME | SPC 1.5t | |
| 16 | REAR DOOR | SPC 1.2t | |
| 17 | CABLE BRACKET | SPC 1.2t | |
| 18 | BOTTOM COVER | SPC 1.2t | |
| 19 | CASTER BRACKET | SPC 1.5t | |
| 20 | ADJUSTMENT FOOT | M12 | |
| 21 | CASTER |
