CABINET RACK
-

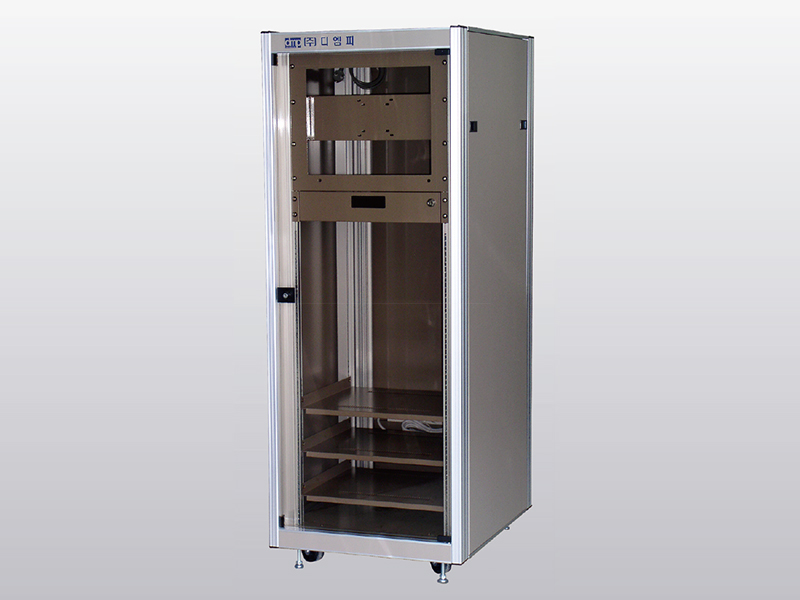

Universal Rack
전자,통신,방송 및 다용도 범용랙
-
Universal Rack

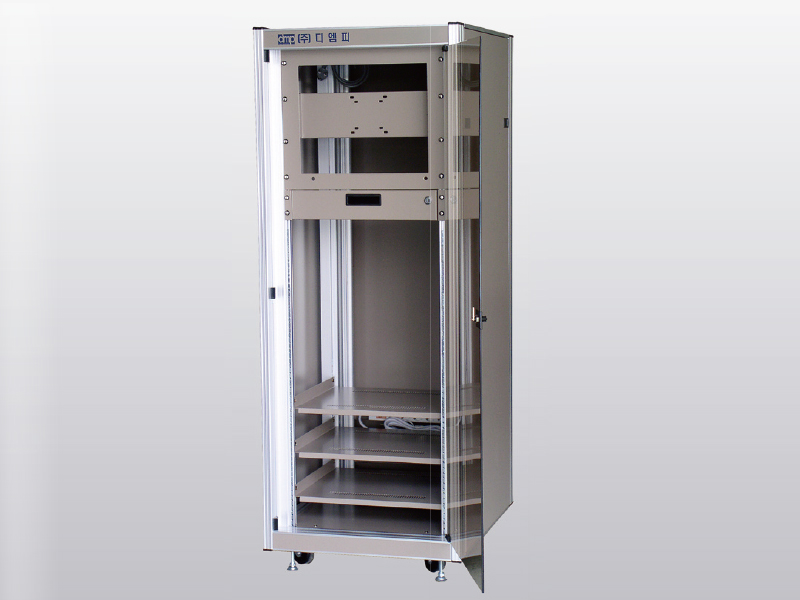

Glass Door Opened
-
Universal Rack

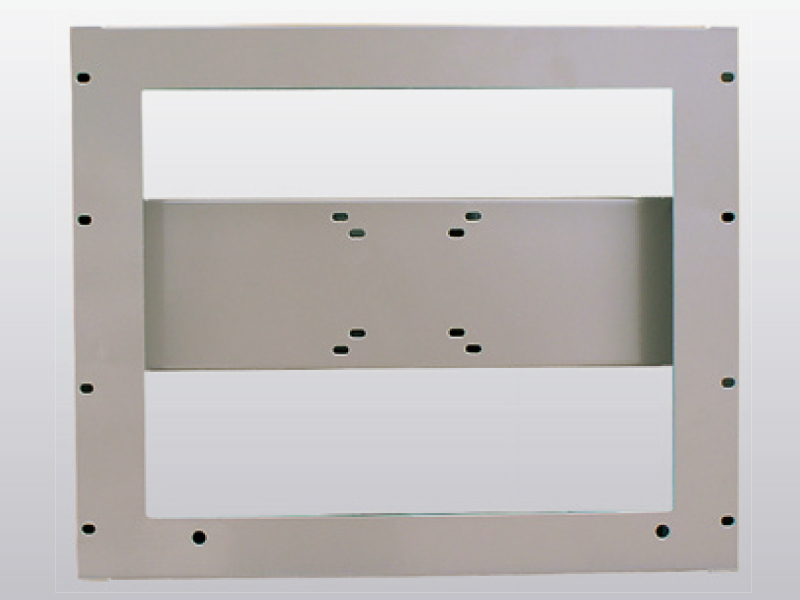

Monitor Panel
-
Universal Rack

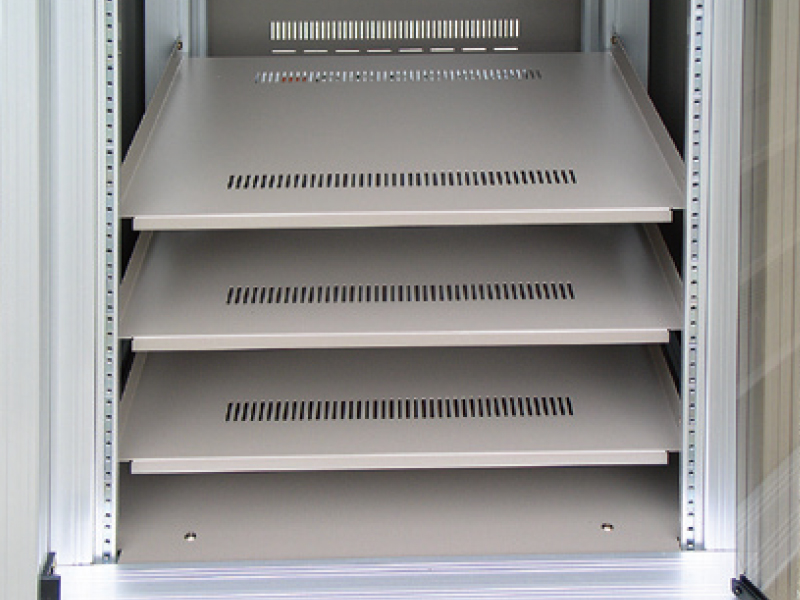

Shelf
-
Universal Rack

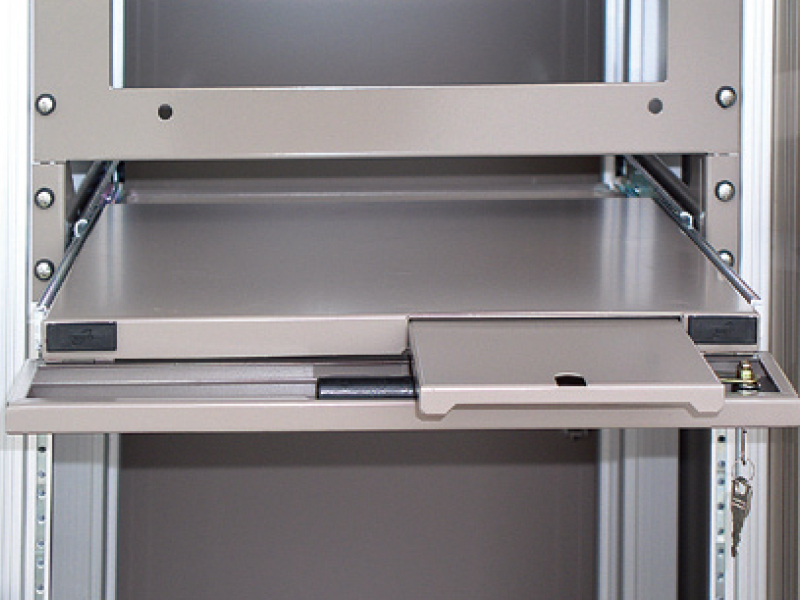

Key Board Shelf(사용)
-
Universal Rack

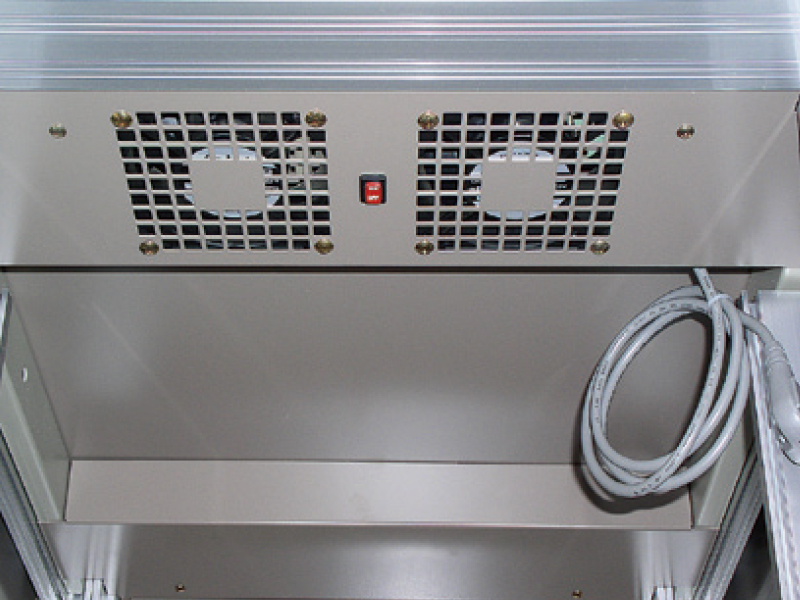

Fan Unit
-
Universal Rack

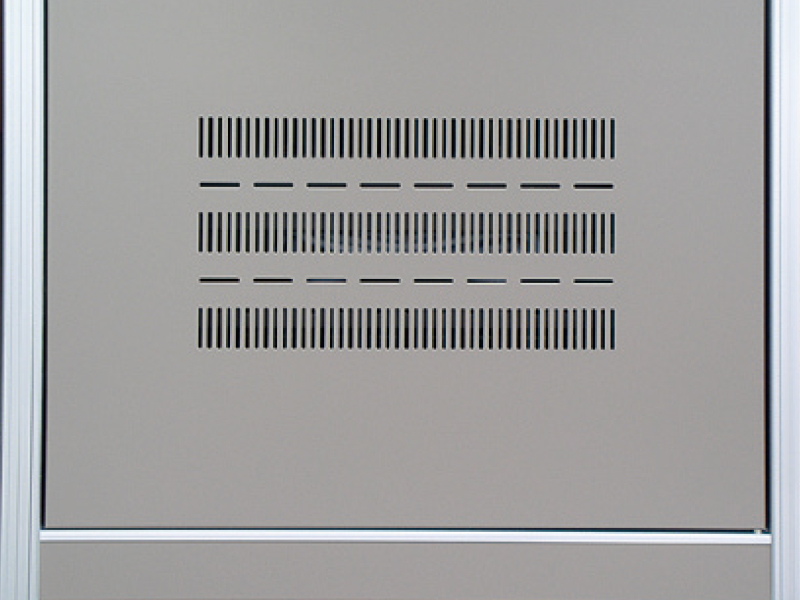

Rear Air Hole
-
Universal Rack
Logo
-
Universal Rack

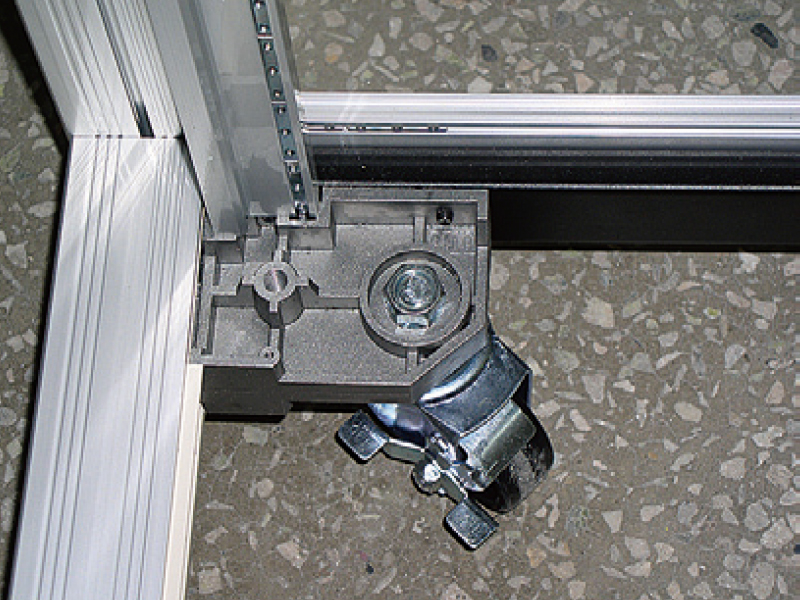

Frame 체결구조
Specification
특징
· 국제규격에 의한 설계로 다양한 기능과 호환성
· Main Frame은 알미늄 압출제 사용
Features
· Designed in accordance with international standard and maximize the user’s convenience with various compatibilities.
· Extruded Aluminium Main Frame.
사양
· 규격 : H: 1800 W: 600(19˝) D: 750
· 재질 : AL 6063-T5 / Steel 1.2T , 1.5T , 2.3T
· 표면처리 : AL백색전착 / Steel 분체도장
Specification
· Size : H: 1800 W: 600(19") D: 750
· Material :AL 6063-T5 / Steel 1.2T , 1.5T , 2.0T
· Surface - AL : White Electrostatic Painting - Steel : Powder Coated
용도
· 통신,방송,전기,전자,자동화,반도체,시험기
Use
· Communication, Broadcasting, Electronic, Factory Automation, Semiconductor, Tester
Standard Dimensions
Unit(U) | 전체높이(H) | 실장높이 | 폭(W) | 깊이(D) | 무게(kg) |
13 | 750 | 547 | 600 (19”) | 750 | 62 |
18 | 1000 | 797 | 70 | ||
22 | 1200 | 997 | 77 | ||
27 | 1400 | 1197 | 83 | ||
31 | 1600 | 1397 | 90 | ||
36 | 1800 | 1597 | 96 | ||
40 | 2000 | 1797 | 103 | ||
45 | 2200 | 1997 | 109 |
Diagram
| NO. | NAME | SPEC | REMARK'S |
| 1 | NAME PLATE | SPC 1.2T | |
| 2 | POWER CONSENT | AC250V | |
| 3 | GLASS FRONT DOOR | 5.0T | DARK GRAY |
| 4 | TOP COVER | SPC 1.2T | |
| 5 | CORNER CAP | ABS | BLACK |
| 6 | BASE(FRONT/REAR) | SPC 2.0t/AL6063 | |
| 7 | BASE(SIDE) | SPC 2.0t/AL6063 | |
| 8 | BASE(DIE-CASTING) | AL5051 | |
| 9 | FAN | AC230V-50/60Hz | 17/15W |
| 10 | FAN COVER | SPC 1.2T | |
| 11 | SIDE COVER | SPC 1.2T | |
| 12 | SLIDE COVER | ABS | BLACK |
| 13 | GUIDE ANGLE | SPC 2.0T | |
| 14 | REAR DOOR | SPC 1.2T | |
| 15 | SHELF | SPC 1.2T | |
| 16 | MAIN VERTICAL FRAME | AL6063-T5 | |
| 17 | SHELF FRAME | AL6063-T5 | |
| 18 | CABLE BRACKET | SPC 1.2T | |
| 19 | BOTTOM COVER | SPC 1.2T | |
| 20 | BOTTOM BASE ASS'Y | ||
| 21 | ADJUSTMENT FOOT | M12 | |
| 22 | CASTER |
